Solar Tracking System

Project Overview

An automated solar tracking system that uses LDR (Light Dependent Resistor) sensors to track the sun's position and adjust solar panels for maximum efficiency.

Completed: 2024
Status: Completed

Project Simulation

Technical Implementation

The system uses four LDR sensors arranged in a cross pattern to detect light intensity from different directions. Two servo motors control the panel's movement in both horizontal and vertical axes.

solar_tracker.ino
Copied to clipboard!
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

#include <Servo.h>

Servo servo1;

Servo servo2;

int LDR1;

int LDR2;

int LDR3;

int LDR4;

int offset1 = 0;

int offset2 = 200;

int val1 = 90;

int val2 = 90;

void setup() {

pinMode(A0, INPUT);

pinMode(A1, INPUT);

pinMode(A2, INPUT);

pinMode(A3, INPUT);

servo1.attach(9);

servo2.attach(10);

servo1.write(90);

servo2.write(90);

Serial.begin(9600);

delay(1000);

}

void loop() {

LDR1 = analogRead(A0) + offset1;

LDR2 = analogRead(A1);

LDR3 = analogRead(A2);

LDR4 = analogRead(A3) + offset2;

Serial.print("LDR1: ");

Serial.print(LDR1);

Serial.print(" LDR2: ");

Serial.print(LDR2);

Serial.print(" LDR3: ");

Serial.print(LDR3);

Serial.print(" LDR4: ");

Serial.print(LDR4);

Serial.print(" val1: ");

Serial.print(val1);

Serial.print(" val2: ");

Serial.println(val2);

if ((LDR2 > LDR4) && (val1 > 0 && val1 <= 175)){

val1 = val1 + 1;

servo1.write(val1);

}

if ((LDR2 < LDR4) && (val1 > 0 && val1 <= 175)){

val1 = val1 - 1;

servo1.write(val1);

}

if ((LDR1 < LDR3) && (val2 > 0 && val2 < 180)){

val2 = val2 + 1;

servo2.write(val2);

}

if ((LDR1 > LDR3) && (val2 > 0 && val2 < 180)){

val2 = val2 - 1;

servo2.write(val2);

}

delay(100);

}

Project Demonstrations

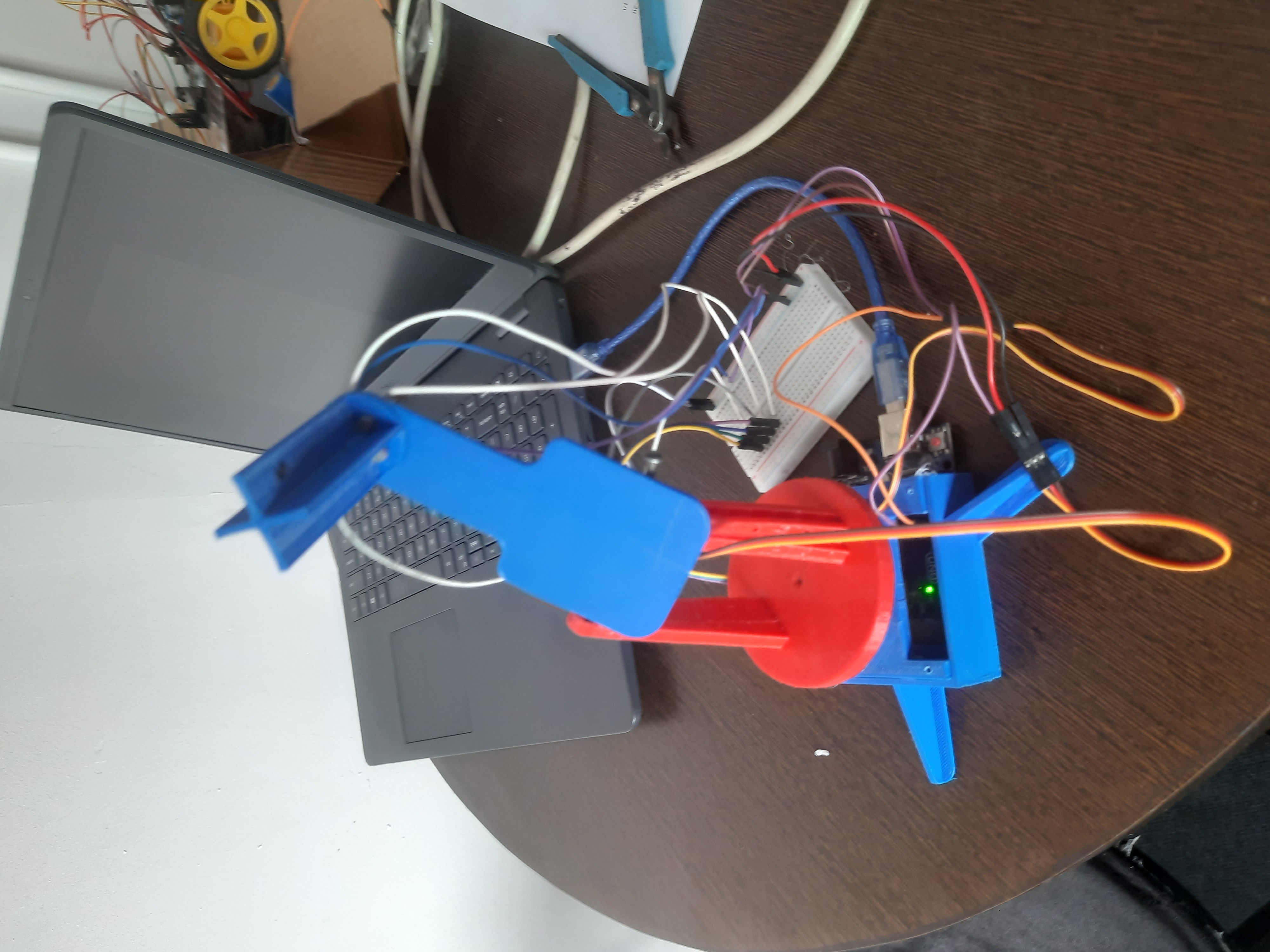

Project Photo

Solar Tracking System in action

Solar Tracking System in action

Key Features

  • Dual-axis solar tracking using two servo motors
  • Four LDR sensors for precise light detection
  • Automatic adjustment based on light intensity
  • Serial monitoring for debugging and calibration
  • Configurable offset values for sensor calibration

How It Works

The system uses four LDR sensors arranged in a cross pattern to detect light intensity from different directions. The sensors are paired (LDR1/LDR3 for vertical movement and LDR2/LDR4 for horizontal movement). When there's a difference in light intensity between paired sensors, the corresponding servo motor adjusts the panel's position to maximize light exposure.

Future Improvements

  • Add weather protection for outdoor use
  • Implement power saving mode during low light conditions
  • Add wireless monitoring capabilities
